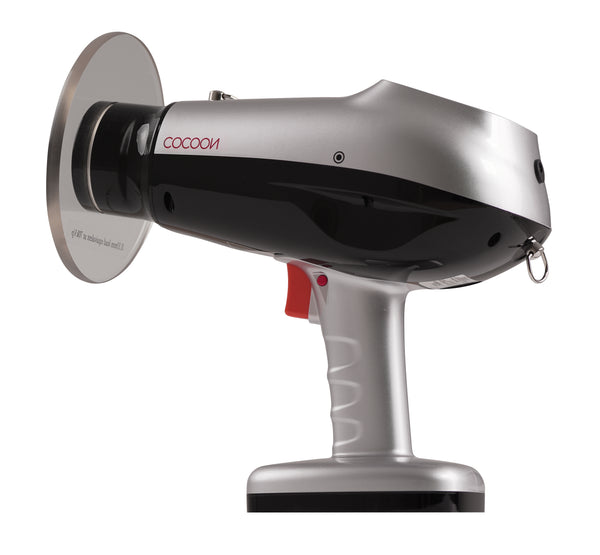

The COCOON Veterinary Dental Handheld X Ray Gun

Product Features

CONVENIENT TRIGGER & GUN GRIP

CORDLESS

EXTREMELY PORTABLE

LOW RADIATION EMITTANCE

The generator and cone are wrapped with lead to protect the leakage radiation. The shield is also a protection feature from back scattering radiation. In the manual there is data proving no leakage radiation.

PATENTED VOICE GUIDE COCOON SPEAKS!

LIGHTWEIGHT – ONLY 5 LBS

CLEAR & PRISTINE IMAGES WITH HIGH DENSITY X-RAY

UP TO 500 SHOTS PER FULL BATTERY CHARGE

ADVANCED SAFETY FEATURES

CARE-FREE POWER CHARGING WITH DUAL POWER SUPPLIES

EASY TO CLEAN WITH UV COATING

NECKSTRAP FOR ACCIDENT PEVENTION & MAXIMUM COMFORT

COMPATIBLE WITH ALL SYSTEMS AND SENSORS (NOT INCLUDED)

COCOON is an independent X-Ray source like a wall mount type. COCOON exposes X-Ray to all imaging material or devices exactly as others work. The only difference from other X-Ray systems is that COCOON is a cordless handheld unit that uses a battery.

CARE-FREE CHARGING & EFFICIENT BATTERY

• The cradle provides a convenient and immediate charging platform, while the Li-battery has a long lasting life cycle, taking just 1hr to be fully charged.
• In addition, the AUTO SHOW-DOWN function controls power consumption to efficiently manage the battery.

ADVANCED RADIATION SAFETY

• Internally: Multiple lead wrapping ensures no radiation leakage.
• Externaly: Back-scatter shield provides safety from radiation dose.
• Trigger Safety & Screen Lock: Prevents un-intended exposure.

ERGONOMIC DESIGN

• Gun Grip Exposure Trigger
• Intuitive User Interface
• East to Clean UV Coated Case

LIGHT & COMPACT

• Weighing in at less than 5 lbs, COCOON takes radiographs twice as fast, reducing operation time and allowing users to take it anywhere.

STABLE POSITIONING: AIMING LIGHT

• Rotary plate provides efficient X-ray positioning and an Aiming light is used to accurately pinpoint the x-ray area

INNOVATIVE AIMING LIGHT. TO ACTIVATE IT:

1. Toggle the white switch in front of the power button forward.

THIS AIMING LIGHT IMPROVES ACCURACY WHEN TARGETING THE SENSOR, REDUCING CONE CUTS AND RETAKES. TO TAKE AN X-RAY:

1. Follow the patient positioning and sensor placement instructions in the Mini Course and Radiographic Positioning Guide provided with your Cocoon.
2. Use the Cocoon's aiming light to aim the crosshairs at the center of the sensor at the correct angle.
3. Pull the trigger.

VOICE PROMPTS

• The Patented voide guidance system conveniently supports and warns users on operational procedures for safety.

FAQ's

1. How does the Cocoon Veterinary Dental Handheld X-Ray Gun help improve efficiency during full-mouth radiographs?

   Its cordless, handheld design allows for fast positioning and shooting without leaving the patient, cutting down on the time it takes to capture a complete set of dental X-rays.

2. Can I use the Cocoon X-Ray Gun for my small animal dental radiography cases?

   Yes — it’s specifically designed for veterinary dentistry and is ideal for small animals, offering sharp, high-resolution images with a 0.4 mm focal spot.

3. How does the Cocoon X-Ray Gun help protect both staff and patients from radiation exposure?

   Built-in safety features like the lead-lined backscatter shield and minimized radiation leakage ensure safer use for both operator and patient.

4. Can I use the Cocoon X-Ray Gun in my mobile or house-call veterinary practice?

   Absolutely. Its portable and battery-powered design makes it an excellent fit for mobile veterinary services, eliminating the need for bulky wall-mounted units.

5. How does the Cocoon X-Ray Gun help maintain consistent, high-quality diagnostic images across different procedures?

   With preset exposure settings and reliable compatibility with all major digital sensors, it ensures uniform image quality without constant recalibration.

• Tube voltage: 70 kV
• Tube Current: 2mA(External Power), 1.7mA( Internal Power)
• X-Ray Tube Focal Spot Size: 0.4mm
• Power Consumption: 350 W
• Cooling Method: Oil Cooling Method
• Total Filtration: Over 2.3mm AI(Inherent Filtration: 1.0mm AI)
• Target Angel: 12.5
• Time Setting Function: 0.05- 1.0sec
• Exposure Time Interval Setting Function: 0.01 sec
• Distance to Target(Distance between Target and Focal Spot): > 18cm (7 inch)
• Main Body Size: 270(L) x 132(W) x 195(H) [mm]
• Main Body Weight(Exclusion Back Scattered Shield): 4.8lb
