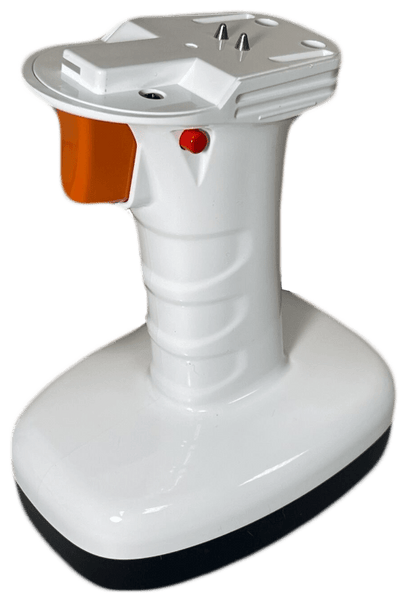

The COCOON Replacement Battery with Handle

$470.00

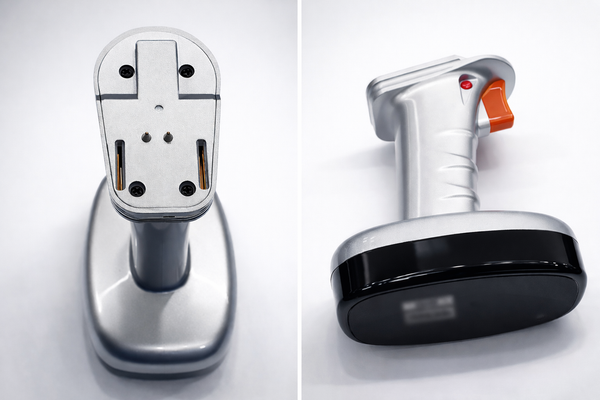

The COCOON Replacement Battery with Handle

IMPORTANT

COCOON handle connection styles have changed over the years, and different COCOON units may require different prong configurations. After purchasing your COCOON handle, please email jen@ivdi.org with the following information so we can ensure the correct handle configuration is sent:

  • Purchaser’s full name
  • Email address used for the purchase
  • COCOON serial number (SN)
  • Clear photo of the connection point on your COCOON unit handle and body

Please send this information promptly after placing your order. Your handle cannot be processed for shipment until we receive this information and confirm the correct connection style.

Handle Removal

Older COCOON models might have a sticker and a screw.

When ordering a replacement battery, please note we can only ship ground. It could take up to a minimum of 5 days but it could be longer.

Warranty on the battery is 1 year. Batteries can last between 2 to 5 years. We recommended replacing every 2 years.

NOTE: THIS PRODUCT ONLY SHIPS INSIDE THE
UNITED STATES (Not yet approved in the following states: North Dakota/Rhode Island/Vermont)

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Product Features

CONVENIENT TRIGGER & GUN GRIP

CORDLESS

EXTREMELY PORTABLE

LOW RADIATION EMITTANCE

The generator and cone are wrapped with lead to protect the leakage radiation. The shield is also a protection feature from back scattering radiation. In the manual there is data proving no leakage radiation.

COCOON SAFETY REPORT

PATENTED VOICE GUIDE COCOON SPEAKS!

LIGHTWEIGHT – ONLY 5 LBS

CLEAR & PRISTINE IMAGES WITH HIGH DENSITY X-RAY

UP TO 500 SHOTS PER FULL BATTERY CHARGE

ADVANCED SAFETY FEATURES

CARE-FREE POWER CHARGING WITH DUAL POWER SUPPLIES

EASY TO CLEAN WITH UV COATING

NECKSTRAP FOR ACCIDENT PEVENTION & MAXIMUM COMFORT

COMPATIBLE WITH ALL SYSTEMS
AND SENSORS (NOT INCLUDED)

COCOON is an independent X-Ray source like a wall mount type. COCOON exposes X-Ray to all imaging material or devices exactly as others work. The only difference from other X-Ray systems is that COCOON is a cordless handheld unit that uses a battery.

CARE-FREE CHARGING & EFFICIENT BATTERY

  • The cradle provides a convenient and immediate charging platform, while the Li-battery has a long lasting life cycle, taking just 1hr to be fully charged.
  • In addition, the AUTO SHOW-DOWN function controls power consumption to efficiently manage the battery.

ADVANCED RADIATION SAFETY

  • Internally: Multiple lead wrapping ensures no radiation leakage.
  • Externaly: Back-scatter shield provides safety from radiation dose.
  • Trigger Safety & Screen Lock: Prevents un-intended exposure.

ERGONOMIC DESIGN

  • Gun Grip Exposure Trigger
  • Intuitive User Interface
  • East to Clean UV Coated Case

LIGHT & COMPACT

  • Weighing in at less than 5 lbs, COCOON takes radiographs twice as fast, reducing operation time and allowing users to take it anywhere.

STABLE POSITIONING: AIMING LIGHT

  • Rotary plate provides efficient X-ray positioning and an Aiming light is used to accurately pinpoint the x-ray area

VOICE PROMPTS

  • The Patented voide guidance system conveniently supports and warns users on operational procedures for safety.

  • Tube voltage: 70 kV
  • Tube Current: 2mA(External Power), 1.7mA( Internal Power)
  • X-Ray Tube Focal Spot Size: 0.4mm
  • Power Consumption: 350 W
  • Cooling Method: Oil Cooling Method
  • Total Filtration: Over 2.3mm AI(Inherent Filtration: 1.0mm AI)
  • Target Angel: 12.5
  • Time Setting Function: 0.05- 1.0sec
  • Exposure Time Interval Setting Function: 0.01 sec
  • Distance to Target(Distance between Target and Focal Spot): > 18cm (7 inch)
  • Main Body Size: 270(L) x 132(W) x 195(H) [mm]
  • Main Body Weight(Exclusion Back Scattered Shield): 4.8lb

COCOON MANUAL

The FDA treats handheld units as wall mounts & requires that the purchaser contact a local service tech to certify (install) the unit. Both the purchaser and installer must submit an FDA2579 form to your state as well as DrBrettsPets.

Returns / Warranty :

We do offer a 2 year manufacturer warranty which covers issues that are not user fault or misuse such as dropping. The battery has a 1 year warranty.
